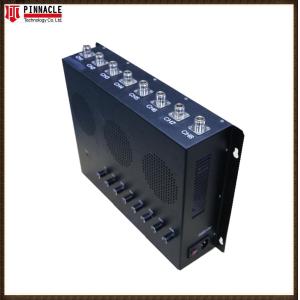

Indoor Wall Type/Desktop High Power Prison Cell Phone Signal Jammer 2g 3G 4G 5G WiFi Blocker

Product Description

Product Information

PTC-WT300W Indoor high power Signal Jammer is specially designed for blocking all cellular networks and all kinds of cellular standard in the world, includes 2g/3g/4g/5g/wifi/VHF/UHFsignals to provide you privacy, security and peace in all ways.

Product Name: Powerful Desktop / Wall Type 11-Antennas with 300W Wireless Signal Jammer For 3G 4G Wi-Fi GPS LOJACK/UHF/VHF

Product Parameters

Basic Specifications

Model: PTC-WT300W

Color: Black

Working Frequencies: 11-frequencies for option

Output Power:Total 300W,10W/20W/30W of each band for option

Jamming range: 10-120meters
Power Controllable: By Ethernet Computer software control

Power Supply: AC110-240V

Cooling System:High efficiency aluminum alloy radiator, Build-in 4 cooling fan

Working Time:Not-stop Working

Product Size: 502x103x 280mm(not Include Antenna)

Product Weight: appr.15kg

Package Contents:Jammer Host x 1, AC adapter x 1,antenna x9

Remote Control: Support both Handheld Panel Control and Internet

software Control
Mounting Methods: can be esily install on Wall or desktop for option
Antennas: 11pcs High gain Omni Antennas and directional antennas for option
Battery: UPS support or external powerful battery for option
Warranty: 2years

The Technical Parameters for PTC-WT300W

Working Frequencies	CDMA: 851-894MHZ
	GSM: 920-960MHZ
	DCS: 1805-1880MHZ
	PCS: 1930-1990MHZ
	3g: 2110-2170MHZ
	4g: 725-770NHZ
	790-825MHZ
	2300-2400MHZ, 2400-2500MHZ, 5150-5850MHZ
	2620-2690MHZ, 3300-3800mhz, VHF/UHF/GPS/remote control signals
Total working bands	11 frequencies for option
Total output power	300W
Each band power	30W
Power Supply	AC-220V/110V
Band power adjustable	By each band knobs or computer software for option
Antennas	11pcs 6dBi high gain external Omni directional antenna
Jamming Range	about 10-120meters, depend on local signal strength
Dimension	502mmX103mmX280mm
N.W	15kgs (no cover antennas)
Stand alone module design
Solid metal out-case, without waterproof
VSWR over protection and temperature over protection
Consumption Power: 900W
Storage temperature: -20ºC ~+60ºC Humidity:5%~90%

Product Advantages

• • High power Jamming 11 frequencies for option from 20-6000mhz.
  • High Gain Directional antennas & 360 degree Omni antennas for option.
  • Each band power can be adjusted by Knobs.
  • Support remote control via ethernets for option
  • Only interfere downlink frequency, without disturb Base Stations working.
  • Smart cooling system with cooling fan inside.
  • Can adjust or turn off any single band without influencing the other bands operation
  • Work non-stopped, this model can work 24/7/365
  • External battery or UPS back up for option to provide non-stop operation while without power from the mains.

Detailed Photos

Remote monitoring software also can be available
a. Working Frequency bands and Output Power Controllable by Software
b. Output Power and VSWR Alarming status
c. Remote Monitoring software to adjust the RF Power of each Band
d. Power Amplifier ON/OFF of each Band by Software

Product Application

Application:
Preventing the use of Mobile phones and communications devices in Prisons and Secure Facilities is an important part of security and crime prevention. Prisons, Shools, Milittary or Government buildings, and any other sensitive locations where the mobile phone signals and other RF Wireless signals are not allowed.
