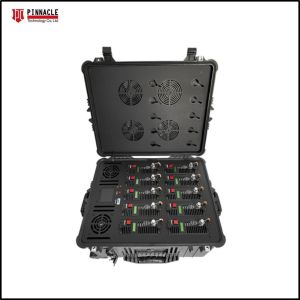

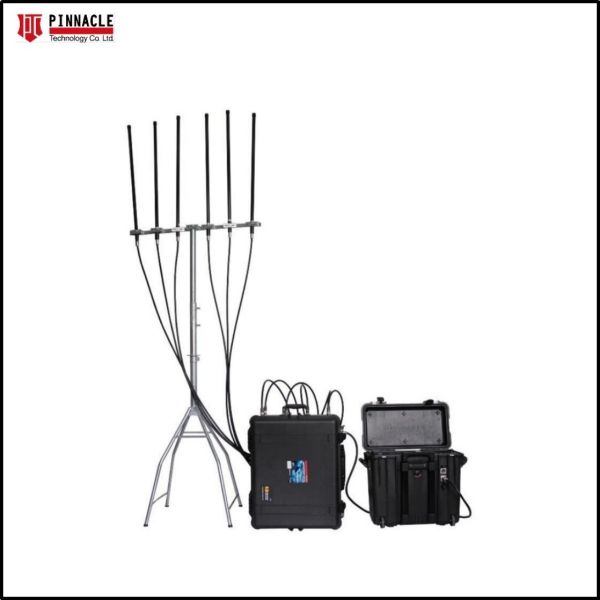

800W High Power Cell Phone Scrambler Jammer Scrambler Pelican Case

Ask Lasest Price
Brand Name :	PTC
Model Number :	P8
Certification :	ISO 9000
Price :	Contact Us
Payment Terms :	T/T, Western Union
Supply Ability :	50000
Delivery Time :	10-20days

Add to Cart

Product Details
Company Profile

800W High Power Cell Phone Scrambler Jammer Scrambler Pelican Case

Product Technical Parameter:

Channel	Working Frequency	Output Power(±3dBm)
CH1	20-100 MHz	44.77dBm
CH2	100-300MHz	44.77dBm
CH3	300-500MHz	47dBm
CH4	800-1000MHz	47dBm
CH5	1520- 1670 MHz	48.75dBm
CH6	1800-2000 MHz	48.75dBm
CH7	2000-2200 MHz	48.75dBm
CH8	2400-2690 MHz	48.75dBm
Power: AC 220V
Power Consumption : 1000W Mainframe weight: 53.6Kg Size(L×W×H):800×500×310 mm
Humidity: 5%-95% Running Temperature: -35 to +80 ℃

Product Details:

1.System accessory table

No	Name	Qty	Unit	Remark
1	Antenna	8	pcs	Omnidirectional
2	Wire controller	1	pcs
3	Line controller control line	1	pcs	Standard
4	Spare Line controller control line	1	pcs	20M
5	Power Line	1	pcs	Standard
6	Hand-pull Box	1	pcs	System Accessary

2.Omnidirectional Antenna Parameter List

Input impedence	50Ω
standing wave	≤1.8
Gain	3dBi
Power Capacity	150W
Direction of Polarization	Vertical Polarization
Cross Modulation	<-107dBm
Interface Type	7/16 or N-K
Lightning Protection	Direct Grounding
Wind Protectionnn	60(m/s)
Pole Diameter	Φ25/40(mm)

Product Features:

l Using UHF broadband interference technology.

l High effective power (channel power) and large interference radius.

l Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.

l Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed

module to avoid the damage of the shielding device.

Product Applications:
Prisons, Recording Studios, Banks, Contract Tendering Rooms, Churches, Classrooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, etc.
