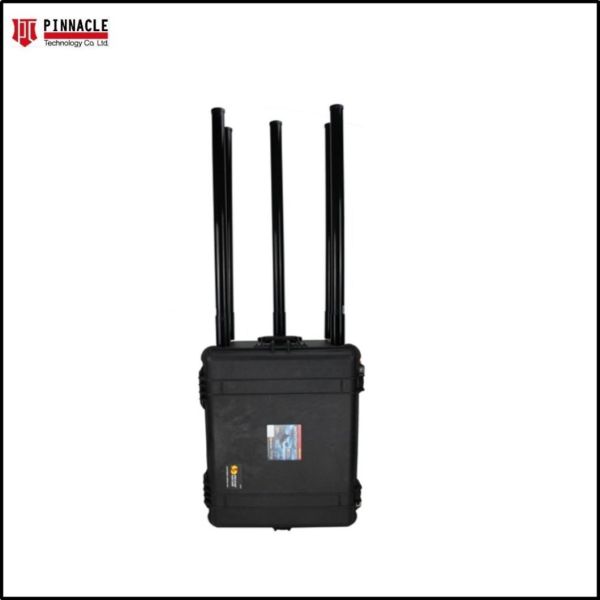

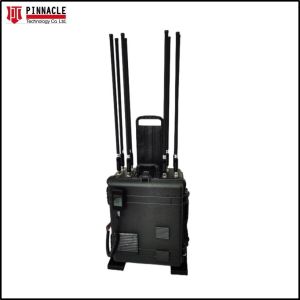

Pelican Military High Power VHF UHF Mobile Signal WIFI GPS Drone Signal Jammer Portable Signal Blocker

Product Description

All-in-One Portable Pelican Signal Jammer PTC-P400W can block all signals GSM/GPRS/DCS/PCS/WCDMA/4G-FDD/4G-TDD/TD-SCDMA/WIFI/WIMAX/5G/VHF/UFH.

PTC-P400W specially designed for RCIED disposal, Pelican Signal Jammer is a wide-band portable jamming system, designed for the protection of VIP's and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Pelican Portable Jammer transmits RF interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Portable Jammers are also deployed to guard forces in the field, Dignitaries and VIP's, checkpoint and border rossings, roadblocks, Embassies, and Government offices etc. This Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user detailed requirements.

Product Parameters

Basic RF Technical Parameters:
Part No.: PTC-P400W
Total Output Power: 400W
Working Channels: 8CH
Jamming Frequency Range: 20-6000MHz for optioin
Jamming Range: 20-150 meters, still depending on the local signal strength
Jammer Size: 670X600X380MM
N.W: 45kgs
Antennas: High Gain Omni Antennas or directional antennas for option
Power Supply: 220VAC/24VDC
External Battery for option: 24V/45Amp
Power Consumption: 1200W for each jammer case
Sweep rate: Fixed
Power control: Each band/channel power can be adjustable
Warranty: 1years

The technical Specification of PTC-P200W

Channel	Working Frequencies	Output Power(±3dBm)
The frequencies for Europe
CH1	920-965MHz	50W
CH2	1800-1880MHz	50W
CH3	2100-2170MHz	50W
CH4	2500-2690MHz	50W
CH5	2400-2500MHz	50W
CH6	790-830MHz	50W
CH7	730-790MHz	50W
CH8	3400-3800MHz	50W
Total power		400W
The frequencies for America
CH1	850-895MHz	50W
CH2	1920-1990MHz	50W
CH3	2110-2170MHz	50W
CH4	2300-2400MHz	50W
CH5	2500-2690MHz	50W
CH6	617-698MHz	50W
CH7	728-806MHz	50W
CH8	3400-3800MHz	50W
Total power		400W
(Option) 5.0-5.5GHz:15W, 5.5-6.0GHz:15W WiFi Civil Remote Contorl Toys: 200-300MHz:50W, 300 -400MHz:50W, GPS L1 L2 L3 L4 L5: 50W
Total output power of each Jammer		400W
Each channel power		50W
Jamming Range		20-150meters, still depend on local signal strength
Jammer dimension		670X600X380MM
Net weight (included battery)		About 45kgs
Power Control		Each band power can be adjustable
Power consumption		1200W
Antennas		high gain Omni antennas and directional antennas for option
Working Humidity		30%-80%
Working Temperature		-20~+50ºC

Product Advantages

System Features and Advantages :

1. Stand-alone modular design and individual power control.
2. Specially designed with portable high grade Pelican cases to cover all the mobile signals 2G/3G/4G/5G cellphone signals. Easily move on the bumpy uneven roads. Resistance from bumps and falls.
3. Support high gain Directional antennas and 360ºC Omni antennas for protection from all 360ºC directions.
4. Fully rainproof design available for some rainy climates. Compound by high IP grade waterproof parts to ensure high waterproof capabilities rain.
5. Modular construction for easy removal and connection, maintenance, repair and convenience for future upgrade.
6. Delicate ventilation design and heat sink built into the case to ensure uninterrupted work.
7. Each Jammer case contains up to 8 different inhibition modules simultaneously.
8. Each module with its antenna can work as an independent complete unit.
9. Each module can be controlled individually.
10. Support external backup battery input for option, adapted for external battery.Facilitating battery change in time for use in the field and thus extending hours duration of the equipment.
11. The Jammer can be portable and mounted in a vehicle, which is the best advantage of the system. The jammer can combine entire frequency bands installed in vehicle, equipped with vehicle mount antennas as required.

Detailed Photos

External Battery for option:

Battery type: LiFePo4 Battery
Battery quantity: 1pcs
Battery capacity: 27V-50Ah
Battery working time: about 1hour

Pelican Case 1440, 35kg Weight.

Antennas:
Support High Gain Omni Antennas or Directional Antennas.

Product Application

disposal squads, VIP protection, EOD(Explosive Ordnance Disposal), Special RCIED disposal department and government security forces, bomb squads, anti-terror units, anti-drug units, border control units, checkpoints etc.

Packaging & Shipping

Pinnacle Technology Co., Limited is a leading provider of advanced Security RF Wireless Communitcation Protection Solutions , mainly specializing in Anti-drone Systems,  RF Jamming Systems and Remote-Controlled Bomb Jamming systems. With a commitment to innovation and excellence, we offer customized solutions to meet the unique needs of our diverse clientele.

Pinnacle Technology Company Limited established more than 15years. The product includes Drone Detector, Anti-Drone Jamming System, Vehicle Convoy IED Jamming System,  Prison Jammer, Military Jammer, School Jammer, Portable Jammer, Defense Jamming System, Mobile Phone Signal Jammer,  WiFi 2.4G/5.8G Signal Jammer, GPS Jammer, Remote Control Jammer, RCIED Bomb Jammer, EOD Bomb Disposal Jammer, IMSI Catcher, SMS Blaster,  Signal Repeaters and so on.

PTC Customized all kinda Jamming products for governments, defense and law enforcement agencies worldwide. We have successfully completed projects in more than 50 countries in Africa, Middle East, South America, and Southeast Asia.

Our key skills include design and integration of complex software and hardware solutions.

PTC has a committed and highly skilled team of researchers, engineers and technicians who can provide precise, tailored solutions for the challenges faced by our customers globally.

Further, we has tie-up with renowned global R&D institutions to further supplement our existing research capabilities.
