Product Description

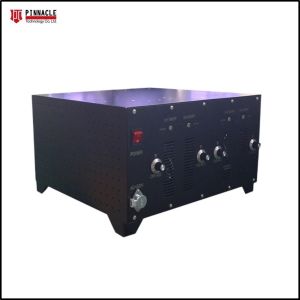

The system is a high power RF Signal Jammer developed specially for
prisons and other large, sensitive facilities, such as milittary
installations and government compounds. It is designed to block
cell phone communications in 2G, 3G, 4G, 5G and Wi-Fi signals. The
system is constructed inside a special metal enclosure,
incorporating an efficient "smart active" cooling system with
incoming air filters. It enables the system to operate 24/7
continuously even in hot weather conditions. Its secure design
ensures that the prison inmates and unauthorized prison personnel
cannot tamper with the safe and continuous operation of the system.
Product Parameters
Basic Specifications
Basic Specifications
Part No.: PTC-WP700W
Working Frequencies: 8Frequencies
Output Power:Total 700W for option
Jam Range: 20-100m@-85dBm environment signal strength, the jamming range is depend on local signals strength given
Power Supply:AC220V/DC-48V(UPS)
Cooling System:High efficiency aluminum alloy radiator
Working Time:Not-stop Working
Power Consumption: 2000W
Jammer Dimension: 385×410×240 mm
Remote Control: IR remote control for turning ON/Off Jammer
Ethernet Control: Computer software control for adjust each band power and monitor
all jammer working status included failure alarm.
Adjustable Power: Each band power adjusted by Knobs for option
Technical Parameters of PTC-WT700W:
| Channels No. | Frequencies | RF Output Power +/-1dBm |
| 1 | 790-894MHz | 100W |
| 2 | 925-960MHz | 100W |
| 3 | 1805-1880MHz | 100W |
| 4 | 2110-2170MHz | 100W |
| 5 | 2620-2690MHz | 100W |
| 6 | 2400-25000MHz | 100W |
| 7 | 5150-5850MHz | 40W |
| 8 | 3400-3800MHZ | 50W |
| Total Working Channels | 8 channels |
| Each band power | 40-100W |
| Total output Power | 700W |
| Remote Control | Support Infrared remote control and software Ethernet Access
control |
| Power Adjustable | Each band power can be adjustable by software |
| Jamming Range | 10-100m@-85dBm environment signal strength, the jamming range is depend on local signals strength given | |
| Jamming Technology for option | VCO, DDS, AI |
| Jammer Size | 385×410×240 mm(LxWxD) |
| Antenna | 1pcs 17dBi High Gain Directional Antennas fully tuned 1jammer |
| Power Supply | AC: 110-240V/DC-48V |
| N.W | 50Kg |
| Working temperature/ | -20ºC-+50ºC |
| Working Humidity | 5% - 95% |
| Temperature Protection | High/Low temperature protection |
| Jamming Frequency Range | Mobile frequencies + wifi Signals, GPS for option |
| Jamming target | 2G/3G/4G/5G mobile phone signals+ WIFI 2.4G, WIFI 5.8G |
Antenna Details:
The Jammer fully tuned by one piece of high gain 17dBi big
directional antenna, The Jammer supports Infrared Remote Control
and RS 485 Internet Software Control, to adjust individual band
power output, so you can adjust each band output power by internet
directly to control the Jammer in all your country to prevent
disturb others.
Product Advantages
1. Each Jammer can jam up to 8 frequencies simultaneously.
2. Supports high gain directional antennas for covering long range
as far as possible
3. Supports Remote control for switching ON/OFF Jammer
4. Supports Remote Access Control (computer internet software
control) for controlling each band power. Failure alarms and
running time.
Jammer Failure Alarms: Such as the cabinet opened maliciously, RF
cables cut off deliberately, Modules failure,Temperature
problems, the failure alarms will be sent to software.
5. UPS and battery backup in case of mains power failure for
option.
6. ON/OFF each modules separately by computer software.
7. For the cellular phone jamming, only block the downlink
frequencies, not disturb the uplink to keep the BTS normal running.
8. Continuous operation, even in hot climates, with no time limit.
9. Heat sink designing combing with the fans to make system in a
cooling status.
10. Secure design to avoid sabotage.
11. (VSWR) circuit protection to ensure system will not burn out in
case of antenna short circuiting or disconnection.
12. Directional antennas and 360 ºC omni antennas for option.
13. 2Years Quality Warranty
Detailed Photos
Control Panel:
OutPut Panel:
Product Application
- Mainly used in examination rooms, prisons, gas stations, mobile
phone bombs, oil depots, LPG stations, detention centers,
interrogation rooms, courts,
- Reform-through-labour teams, conference rooms, movie theaters,
churches, libraries, school dormitories;
- Special security and confidential occasions (confidential office,
negotiation room, mobile vehicles, mobile political and business
dignitaries guarding the scene;
- All kinds of milittary sites and other prohibited places to use
mobile phones
